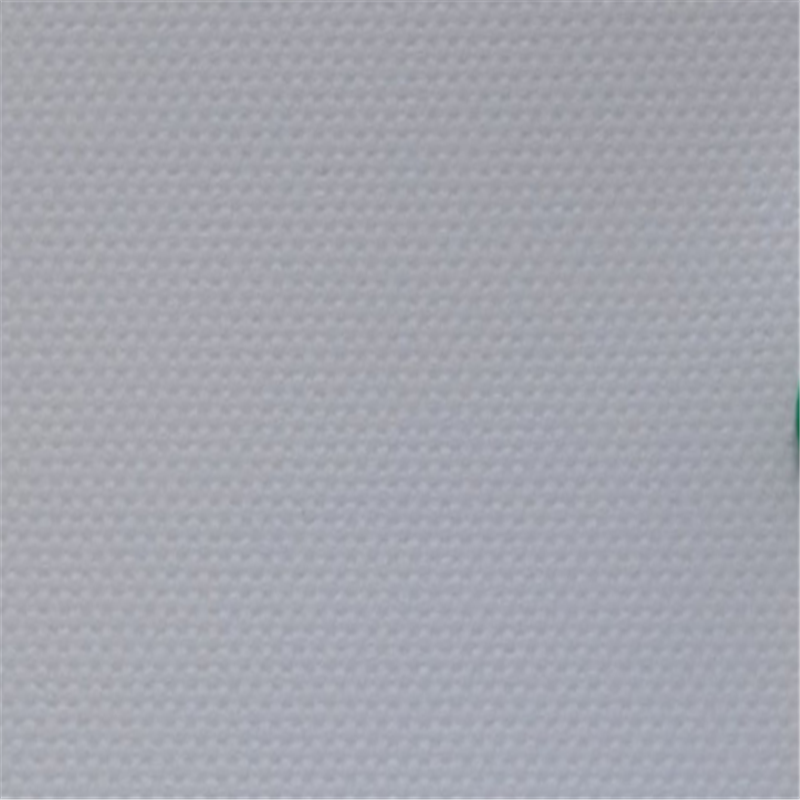

Matt White Fiberglass base Projection Screen Fabric


Cleaning with soapy water is sufficient. Do not use powder or abrasive paste. We advise that you test any cleaning agent on a small area first.

Radio Frequency welding: Optimization needed depending on machine. When welding the joins, should be made using the same side of the roll ( right to right and left to left)

Digital printing and spray coating with solvent inks. Depends upon the type of machine and the nature of the ink. We always recommend preliminary testing prior to full production running.

After unrolling: For a good lay flat, cut panels should be allowed to relax for 24 hours and then should be trimmed square.

Storage & Handing: We recommend indoor storage ( no sunlight ) at room temperature ( max 23℃ ) , storage time less than six months after production date. Film should be stored at room temperature ( max 23℃, min 24h ) before processing.


DETAIL
Item No. KW006
Base FabricFiberglass Fabric
Weight620(±20)gsm
Reference standardDIN53354Tensile LoadMeridional≥2000N/5cm
Zonal
DIN53363Tear LoadMeridional≥70N/5cm
Zonal≥100N/5cm
DIN53357Peel off strengthMeridional ≥38N/5cm
Zonal
Fire resistantYES Mildew ProofYES
CleanableYESAntistaticYES
Viewing angle100°(L&R50°)Gain1.1

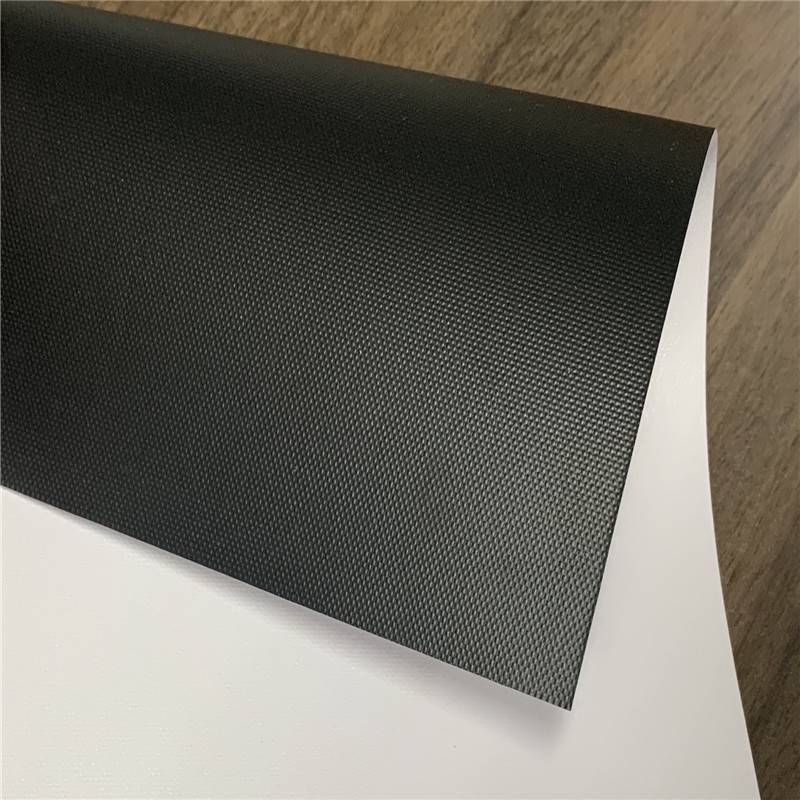

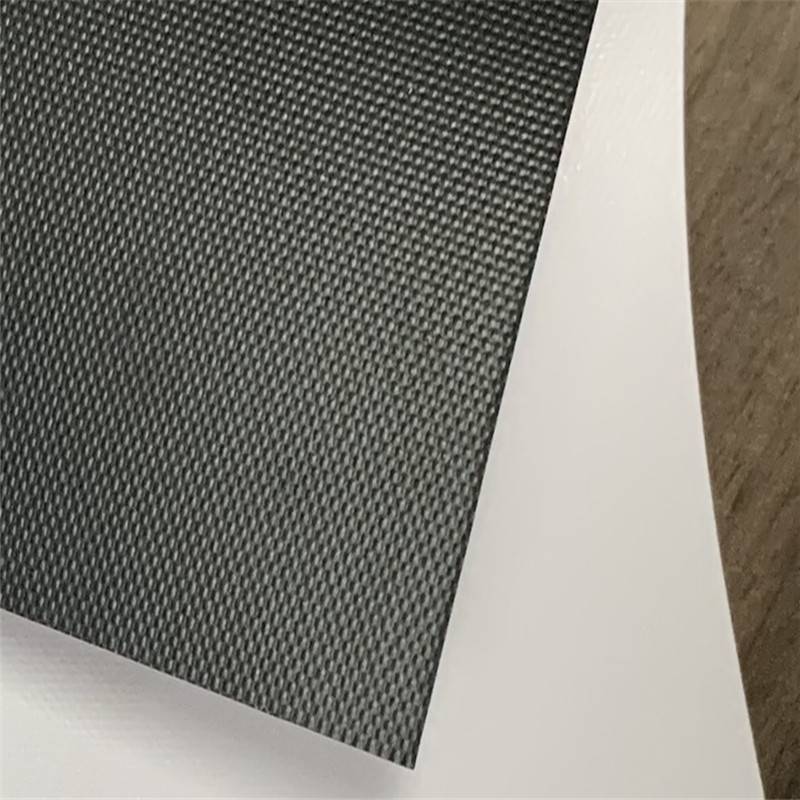

Suitable temperature -20° ~ +60°Product structureWhite PVC film   + Glass Fiber + Black PVC film
Width1.85m/2.15m/2.5m/3.00m/3.20mThickness 0.42mm±0.02mm
