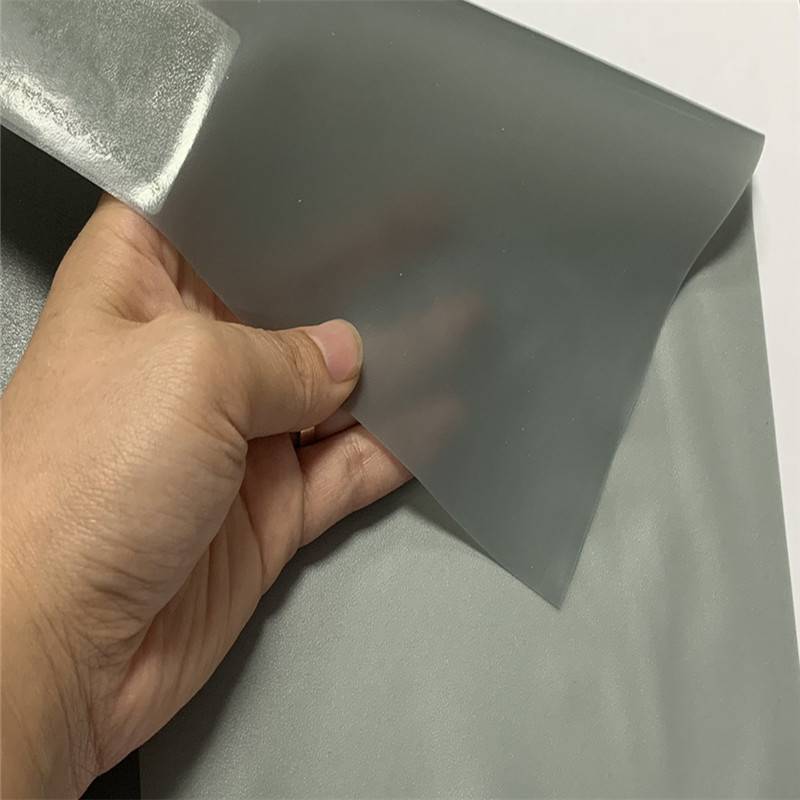

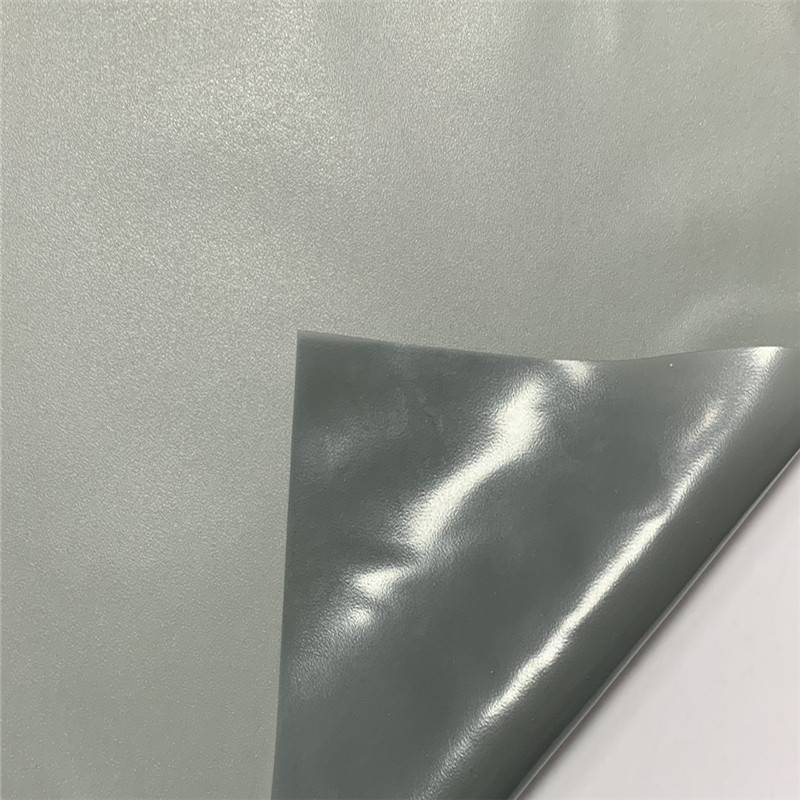

Rear Projection Screen Film


Cleaning with soapy water is sufficient. Do not use powder or abrasive paste. We advise that you test any cleaning agent on a small area first.

Radio Frequency welding: Optimization needed depending on machine. When welding the joins, should be made using the same side of the roll ( right to right and left to left)

Digital printing and spray coating with solvent inks. Depends upon the type of machine and the nature of the ink. We always recommend preliminary testing prior to full production running.

After unrolling: For a good lay flat, cut panels should be allowed to relax for 24 hours and then should be trimmed square.

Storage & Handing: We recommend indoor storage ( no sunlight ) at room temperature ( max 23℃ ) , storage time less than six months after production date. Film should be stored at room temperature ( max 23℃, min 24h ) before processing.

DETAIL
Item No.  KW013
Reference standardDIN53354Tensile LoadMeridional15N/5cm
Zonal
DIN53363Tear LoadMeridional170N/5cm
Zonal
DIN53357Peel off strengthMeridional 38N/5cm
Zonal
Fire   resistantYES Mildew ProofYES
CleanableYESAntistaticYES
Viewing   angle60º  (L&R30º)Gain1
Suitable   temperature  -20°    ——  +40°Product structure PVC
Width2.2m/2.5m/2.8m/3.2m/3.66mThickness0.32mm±0.02mm
Note: If customers have special needs, according   to the contract
