OPTIONAL SCREEN SURFACE MATERIAL
Surface Item No.: KW019 White Nano-4K Projection Screen Film Gain: 1 Viewing Angle: 110°(L &R 55°) Base Fabric: PET Film | Surface Item No.: KW005 Matt White Woven Projection Screen Fabric Gain: 1.1 Viewing Angle: 100°(L &R 50°) Base Fabric: Woven Polyester Fiber |
Surface Item No.: KW004 Matt White Warp Knitted Projection Screen Fabric Gain: 1.1 Viewing Angle: 100°(L &R 50°) Base Fabric: Warp Knitting Fiber | Surface Item No.: KW005G Matt Gray Woven Projection Screen Fabric Gain: 0.8 Viewing Angle: 100°(L &R 50°) Base Fabric: Woven Polyester Fiber |
Surface Item No.: KW008 Matt White Woven Projection Screen Fabric Gain: 1.1 Viewing Angle: 100°(L &R 50°) Base Fabric: Woven Polyester Fiber | Surface Item No.: KW006 Matt White Glass Fiber Projection Screen Fabric Gain: 1.1 Viewing Angle: 100°(L &R 50°) Base Fabric: Glass Fiber |
Note: Please check our "projection screen surface materials" catalog for more surface details.

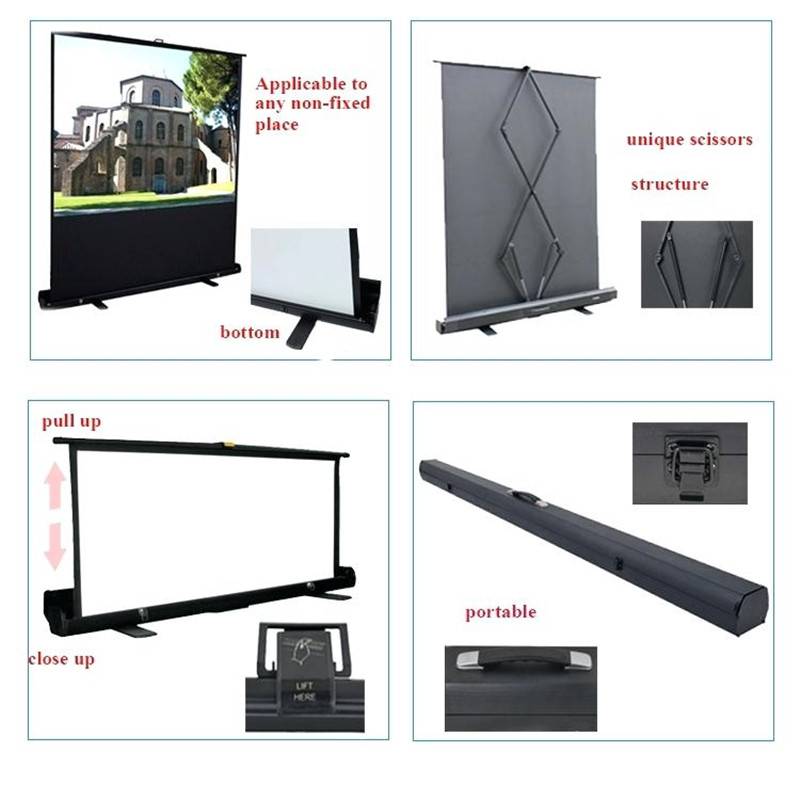

KEY FEATURES
. Quick and easy set up.
. Robust iron housing with integrated carry handle.
. Black borders and black to improve contrast.
. Height adjustable at any position.
. Scissor joint system with pneumatic lift.
. Opaque black backing impervious to light.
. Foldout feet to provide extra stability.
Format | Specification (inch) | Viewing Area(W*H) | Case Length | |
With Borders | Without Borders | |||
4：3 | 40 | 813*610 | 873*815 | 963 |
50 | 1016*761 | 1076*1106 | 1166 | |
60 | 1220*914 | 1290*1634 | 1380 | |
70 | 1422*1067 | 1492*1892 | 1582 | |
72 | 1463*1097 | 1533*1802 | 1620 | |
80 | 1625*1220 | 1695*1945 | 1785 | |
84 | 1707*1280 | 1777*2105 | 1867 | |
100 | 2030*1520 | 2100*2235 | 2192 | |
16:9 | 40 | 885*498 | 945*894 | 1035 |
50 | 1107*622 | 1167*1209 | 1257 | |
60 | 1328*747 | 1398*1510 | 1488 | |
70 | 1550*871 | 1620*1744 | 1710 | |
80 | 1770*995 | 1826*2038 | 1930 | |
84 | 1860*1045 | 1930*1988 | 2020 | |
92 | 2030*1145 | 2100*1990 | 2192 | |
Note:
1.Unremarked measurements are default to be mm.
2.Specifications are subject to change without notice.
3.The dimensions provided are the mean values of the production units. Very slight deviations may be possible.
4.All size can be customized.
Requested information to make a quote:
. Type of projection screen surface
. Image format
. Housing Type
. All details related to the installation needing a modification of the standard product.
