OPTIONAL SCREEN SURFACE MATERIAL
Surface Item No.: KW003 3D Projection Screen Film Gain: 2 Viewing Angle: 80°(L &R 40°) | Surface Item No.: KW001 Matt White Projection Screen Film Gain: 1.1 Viewing Angle: 100°(L &R 50°) |
Surface Item No.: KW002 Matt Grey Projection Screen Film Gain: 0.8 Viewing Angle: 100°(L &R 50°) | Surface Item No.: KW019 5M Ultra-wide Projection Screen Fabric Gain: 1 Viewing Angle: 110°(L &R 55°) |
Base Fabric: PET Film
Note: Please check our “projection screen surface materials” catalog for more surface details.
KEY FEATURES
. Design with tab-tensioned system for a perfectly flat screen surface.
. Professional quality for highest demands.

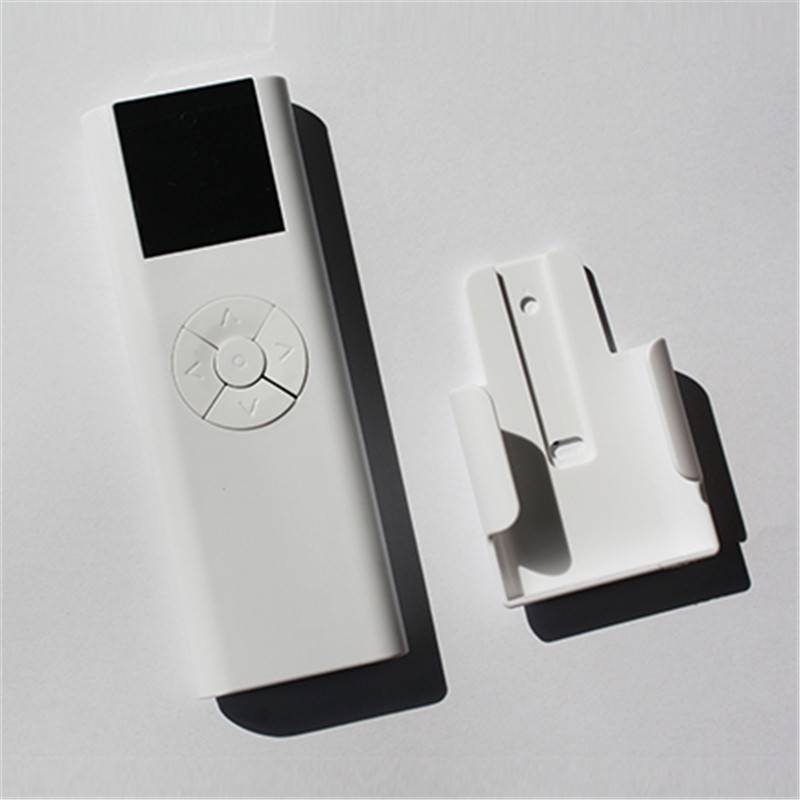

. A handheld RF remote control can be optional.
. With an aluminum alloy casing design, it provides a modem light weight yet rigid structure.
. Black borders and black to improve contrast.
. Suitable for wall and ceiling installation.
Format | Specification (inch) | Viewing Area(W*H) |
| |
With Borders | Without Borders | |||
4：3 | 84 | 1480*2507 | 1280*1707 | 2190 |
100 | 1724*2832 | 1524*2032 | 2523 | |
120 | 2092*3238 | 1892*2438 | 2926 | |
150 | 2486*3848 | 2286*3048 | 3538 | |
1：1 | 77 | 1905*1758 | 1705*958 | 2195 |
80 | 1970*1795 | 1770*995 | 2258 | |
92 | 2237*1945 | 2037*1145 | 2532 | |
100 | 2414*2045 | 2214*1245 | 2702 | |
106 | 2546*2120 | 2346*1320 | 2834 | |
120 | 2856*2294 | 2656*1494 | 3144 | |
150 | 3520*2667 | 3320*1867 | 3810 | |
Note:
1.Unremarked measurements are default to be mm.
2.Specifications are subject to change without notice.
3.The dimensions provided are the mean values of the production units. Very slight deviations may be possible.
4.All size can be customized.
Requested information to make a quote:
. Type of projection screen surface
. Image format
. Housing Type
. All details related to the installation needing a modification of the standard product.
